  • SHLM-S1400型龙门分切机(1726119908532).png

SHLM-S1400 Gantry Slitting Machine

This machine adopts three asynchronous servo motor control, German rex inverter adjustment, hydraulic or pneumatic automatic feeding, reduce the feeding time, more simple and easy operation, save time and effort, and improve production efficiency. This machine adopts Siemens PLC computer automatic control, 10 inch touch screen operation, with automatic meter, intelligent length stop, emergency shutdown, automatic tension and other functions, roll using material platform, material leveling, convenient pneumatic pressing, roll using slip shaft suitable for a wide range of materials. Frame structure is more dustproof, with automatic unloading device, unloading easy and labor.

Classification:

Products

Slitting Machine

Key words:

SHLM-S1400 Gantry Slitting Machine

E-Mail：

wenjinbao@sh-slittingmachine.com

Tel / Wechat / WhatsApp：

+86 15157748066

Product Message
Contact Us

Product Description

Items 1300Parameters
Cutting Material Optical film，Paper，Soft packaging industry，PET,OPP,CPP,PVC,OCA,Protective film,Release film，Adhesive，Synthetic paper and other coils
Raw material Width 1300mm（Wheel Face Width 1350mm）
Maximum Unwinding Diameter Φ1200mm
Maximum Take-up Diameter Φ1200mm
Slitting Width 50-1300mm
Uniformity of Cut End ±0.1mm
Inside Diameter of Take-up Die 3inch（76.2mm）
Mechanical Running Speed 0-500M/min（Design Speed，Due To Material Characteristics）
Power  Supply 380V 50HZ 3PHASE
Total Machine Power 38KW
Air Pressure Source 3KW（Prepared By Customer）
Machine Size Length5617mm×Width3174mm×Height2050mm
Machine Weight 5800KG（Conjoined Machine）
Slitting Type Straight knife cut Or Circular Slitting Or gas knife
Tension Control Method Auto-control
The previous image
The following text The width of this model can be customized 600-2200mm, the maximum winding diameter of 1200mm, the maximum winding diameter of 2000mm

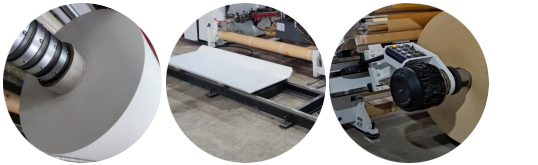

User value

Qualification Honor

The company adheres to the design concept of "green, energy saving, low carbon", and has always been committed to providing customers with reliable and qualified products. We organize production in strict accordance with technical standards, and our products have passed various export certifications and testing reports such as ISO9001 quality system, and won the honor of high-tech enterprises, specialized and special new enterprises.
