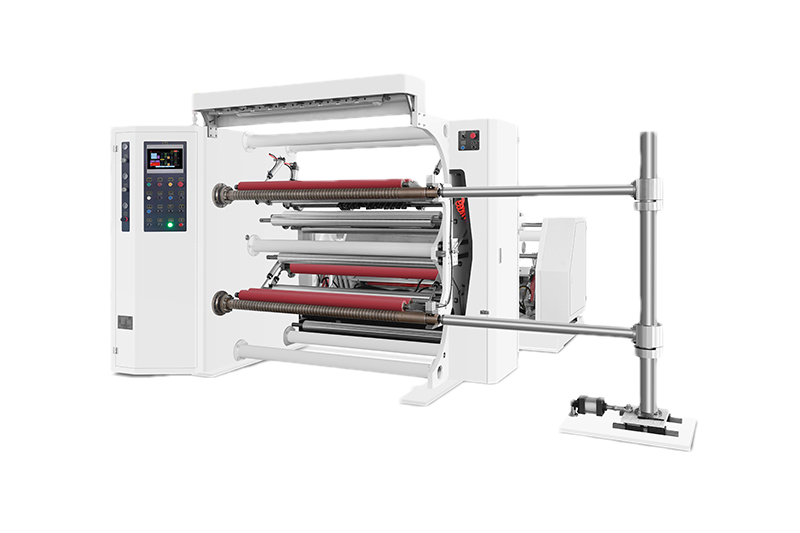

Horizontal slitting machine

This machine adopts double asynchronous servo motor control, German Rexroth inverter adjustment, winding using shaft type; winding using air pressure shaft automatic feeding, reduce the feeding time, more simple and easy operation, save time and effort, improve production efficiency. This machine adopts Siemens PLC computer automatic control, 10 inch touch screen operation, with automatic meter, intelligent length stop, emergency stop, automatic tension and other functions, the unilateral discharge saves time and effort.

Classification:

Products

Slitting Machine

Key words:

Horizontal slitting machine

E-Mail：

wenjinbao@sh-slittingmachine.com

Tel / Wechat / WhatsApp：

+86 15157748066

Product Message
Contact Us

Product Description

Items 1300 Parameters
Cutting Material PET,OPP,CPP,PVC,OCA,Protective film,Release film，Adhesive，Synthetic paper and other coils
Raw material Width 1300mm（Wheel Face Width 1350mm）
Maximum Unwinding Diameter Φ1200mm
Maximum Take-up Diameter Φ600mm
Slitting Width 20-1300mm
Uniformity of Cut End ±0.1mm
Inside Diameter of Take-up Die 3inch（76.2mm）
Mechanical Running Speed 0-200M/min（Design Speed，Due To Material Characteristics）
Power  Supply 380V 50HZ 3PHASE
Total Machine Power 9KW
Air Pressure Source 3KW（Prepared By Customer）
Machine Size Length3176mm×Width2330mm×Height1420mm
Machine Weight 2500KG（Split Machine）
Slitting Type Straight knife cut Or Circular Slitting
Tension Control Method Auto-control
The previous image
The following text The width of this model can be customized 600-2000mm, the maximum diameter of 800mm, the maximum diameter of 1500mm

User value

Qualification Honor

The company adheres to the design concept of "green, energy saving, low carbon", and has always been committed to providing customers with reliable and qualified products. We organize production in strict accordance with technical standards, and our products have passed various export certifications and testing reports such as ISO9001 quality system, and won the honor of high-tech enterprises, specialized and special new enterprises.
